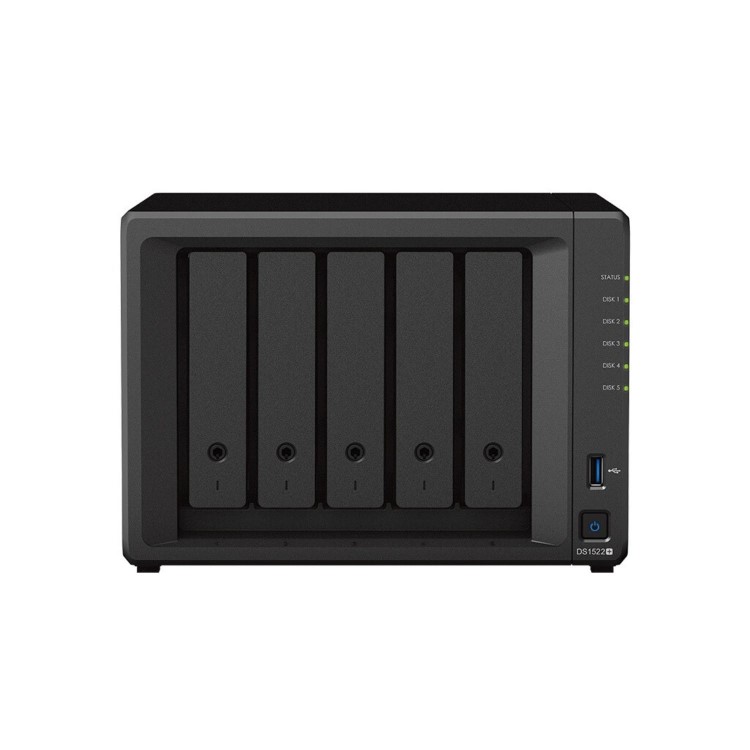

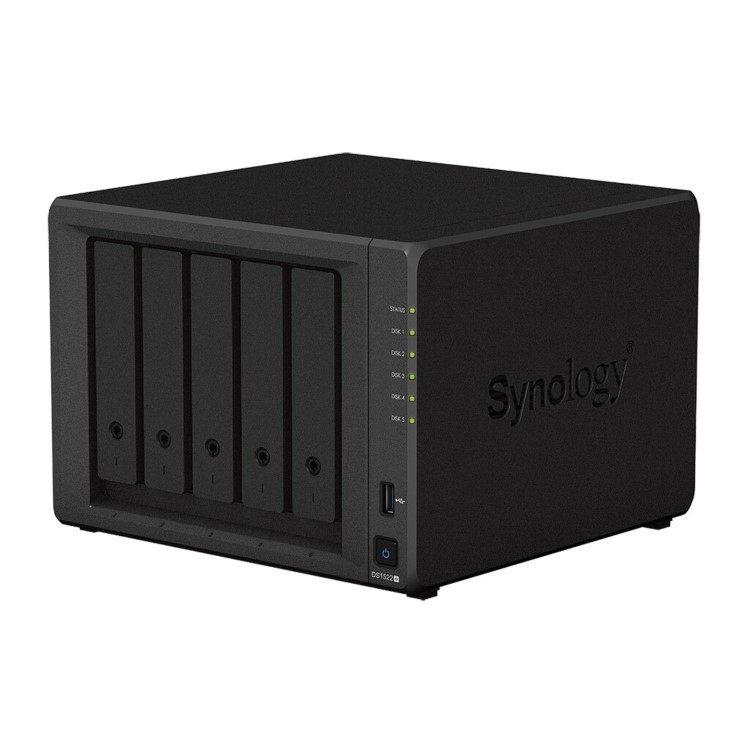

Synology DiskStation DS1522+
Model: DS1522+/30TB-HAT3300
Description: Synology DiskStation DS1522+ 30TB (5x 6TB HAT3300) 5 Bay Desktop NAS
The Synology DS1522+ is a versatile 5-bay NAS solution that is easy to scale and expand as your needs change, with optional support for up to 15 drives, fast networking, and NVMe SSD caching. Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance.
Flexible data management for homes and small business
The 5-bay Synology DiskStation DS1522+ is easy to scale and expand as your needs change, with optional support for up to 15 drives, 10GbE networking, and NVMe SSD caching. Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance.
- Throughput - Over 736/796 MB/s sequential read/write
- Memory - 8 GB DDR4 ECC (max. 32 GB)
- Connectivity - Four built-in 1GbE ports with easy 10GbE option
- Scalability - Up to 15 drive bays with 2 DX517 expansion units
Whether you’re a home user looking to store multimedia files and share them in the cloud, or a small business that requires a scalable storage solution with multiple RAID options, the Synology DiskStation DS1522+ NAS is an excellent choice. With five drive bays, two embedded M.2 NVMe SSD cache slots, and the ability to add 10 more drives via an expansion unit, it offers plenty of storage options. It is also equipped with numerous I/O ports and offers an easy and relatively affordable path to 10Gbps network connectivity.
Simply faster
DS1522+ can handle more demanding application workloads and a greater number of concurrent users compared to prior-generation systems. Experience faster file indexing in Synology Drive, photo organization in Photos, and concurrent file transfers.
- Synology Drive 24% faster file indexing
- Synology Photos 25% faster photo indexing
- Multiple file transfers 32% faster random write
Flexible networking options
Reduce transfer times with the DS1522+, designed to accelerate your workloads. Easily add faster networking and NVMe drives to further boost performance.
- Up to 736/796 MB/s read/write
- Up to 10GbE networking
- 2 x M.2 NVMe cache & storage pool
Everything you need for your home office
Make the most of high-performance networking and file access without taking up unnecessary space. DS1522+ comes equipped with 5 bays and can scale up to 15 bays with 2 DX517 expansion units as your data needs grow.
- 5 bays - 72 TB
- 15 bays - 216 TB
Store, share, and protect
Manage all your documents, photos, and other files, back up applications and devices, or protect your assets with professional video surveillance.
File Server
Store and access files from all your devices, and protect them with smart versioning. Sort, manage, share, and sync your data across locations.
A private cloud for all your devices
Store, sync, and access data from any device, wherever you are with Synology’s private cloud solution. Sync data between different platforms and devices, and access your files through mobile apps, desktop clients, and a browser-based interface. Leverage smart versioning to back up important data via desktop and mobile applications.
Dependable and secure network storage
Use shared folders on your Synology device as reliable storage available from anywhere on your local network over all common protocols (SMB/NFS/WebDAV/FTP). Protect your files against accidental changes and removal or even malware attacks with built-in snapshot technology and other backup options.
Sort, manage, and share your files
Rely on our file, photo, and multimedia management apps to sort your data by metadata, filters, and labels. Safely share files and folders with family, colleagues, or business customers thanks to granular access and sharing permissions. Create convenient sharing links and secure shared files with expiration dates and individual passwords. Let friends or clients review photos remotely and give easy feedback through star ratings.
Use shared folders on your Synology device as reliable storage available from anywhere on your local network over all common protocols (SMB/NFS/WebDAV/FTP). Protect your files against accidental changes and removal or even malware attacks with built-in snapshot technology and other backup options.
Access files from anywhere
Rely on our file, photo, and multimedia management apps to sort your data by metadata, filters, and labels. Safely share files and folders with family, colleagues, or business customers thanks to granular access and sharing permissions. Create convenient sharing links and secure shared files with expiration dates and individual passwords. Let friends or clients review photos remotely and give easy feedback through star ratings. Learn more
Sync files and folders between sites
Benefit from two efficient ways to keep files and folders synchronized between different locations — such as your home and your business, or teams in different countries. Sync folders one or two-way between Synology devices using Synology Drive ShareSync, a free site-to-site solution. Or choose to leverage our secure data centers to store your data in the cloud, while keeping a cache of frequently accessed or manually pinned files on your DS1522+ with Synology Hybrid Share. Such hybrid cloud storage lets you access data at LAN speeds without being limited by your local storage size or bandwidth.
Multi-Layered Backup
Back up files, folders, physical devices, VMs, and SaaS applications with free solutions, and protect your NAS with built-in technologies.
Protect full endpoints, servers, and VMs
Securely back up Windows clients and servers, Linux endpoints, VMware® and Hyper-V® virtual machines, and other Synology devices. Leverage built-in deduplication technology to greatly reduce backup sizes and multi-versioning restore systems to a time point of your choice.
Make local backups of your cloud apps
Protect business Microsoft 365 and Google Workspace accounts by maintaining complete offline copies of your crucial information and configurations with Active Backup for Microsoft 365 and Active Backup for Google Workspace.
Back up documents and multimedia
Set up backup tasks to protect important folders on your PC and macOS device with Synology Drive. On your mobile device, automatically save another copy of the photos and videos you take, and easily organize and share them through Synology Photos.
Back up your NAS to multiple destinations
Protecting the data on your Synology system, and your server itself, means storing frequent emergency copies to multiple locations. Built-in tools in Synology DSM let you efficiently back up files, folders, or your entire system from your device to remote servers, external drives, or Synology and third-party cloud storage, with space-saving deduplication technology reducing total backup sizes, and customizable backup and retention schedules for maximum flexibility.
High-frequency protection with snapshots
Take point-in-time snapshots of shared folders and LUNs at intervals of down to 5 minutes to protect against data loss, accidental deletion, or malware attacks. Set a custom retention schedule and roll back files and VMs to a version that is unaffected.
Smart Surveillance
Transform your Synology device into a full-featured video management system for a wide range of compatible IP cameras.
Wide compatibility
Connect up to 40 IP cameras from a selection of over 8,300 validated models thanks to wide camera compatibility and ONVIF support in Synology Surveillance Station.
Secure and private
Footage stored locally can be protected from unauthorized access by industry-standard AES-256 encryption.
24/7 everywhere access
Monitor live streams or watch recordings from web browser, desktop client, or the DS cam mobile app.
Wide compatibility
Connect up to 40 IP cameras from a selection of over 8,300 validated models thanks to wide camera compatibility and ONVIF support in Synology Surveillance Station.
Secure and private
Footage stored locally can be protected from unauthorized access by industry-standard AES-256 encryption.
24/7 everywhere access
Monitor live streams or watch recordings from web browser, desktop client, or the DS cam mobile app.
Full-featured surveillance
Automatically locate cameras within a set IP range, and configure units in batch by importing spreadsheets or by replicating settings to new cameras.
Multi-location alerts
Stay on top of your deployment by previewing triggered events directly on multi-floor or even multi-location maps, with online map integration for Google Maps and OpenStreetMap.
Video analytics
Take advantage of intelligent monitoring features such as motion detection, no idle zone, foreign object detection, and anomaly detection to cater the most common surveillance scenarios.
Performance backed by Synology drives
Leverage high sustained performance and reliability with enterprise-grade drives with built-in data protection designed for Synology systems.
Get more with DiskStation Manager
Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Extra protection with Extended Warranty Plus
Extend the standard 3-year hardware warranty of your DS1522+ with 2 more years of Synology-certified support and premium services that help you recover faster in the event of disaster.
***Notes:
- Performance figures are obtained through SMB sequential throughput tests using Windows Server 2016 Datacenter on a DS1522+ with a Synology 10GbE NIC and HDD. Actual performance may vary depending on the testing environment, usage, and configuration. PCIe add-in cards, expansion units, and storage drives are sold separately. Refer to the compatibility list for compatible devices.
- Based on internal processor benchmarks between DS1522+ and the prior-gen DS1520+. Actual performance may vary depending on hardware and software configuration, workload, and testing environment.
- Synology SNV3400 series M.2 NVMe SSD drives can be installed through the built-in M.2 slots to enable SSD caching or create SSD storage pools. Drives are sold separately.
- Storage figure calculated based on a RAID 5 configuration. Total storage capacity may vary depending on hard drives used and RAID configuration.
- C2 Storage for Hyper Backup and Hybrid Share requires purchase of an eligible annual or monthly subscription. A free trial is available for each newly registered account.
- Surveillance Station includes 2 free licenses. Connecting more cameras and devices requires additional licenses.
- Extended Warranty Plus must be purchased within 90 days of the device purchase date or, if none is available, 180 days of the device manufacturing date. A Synology Account is required for the purchase. The starting date of Extended Warranty Plus additional coverage is calculated based on the purchase date of your Synology NAS. If you cannot provide proof of purchase, the device manufacturing date applies.

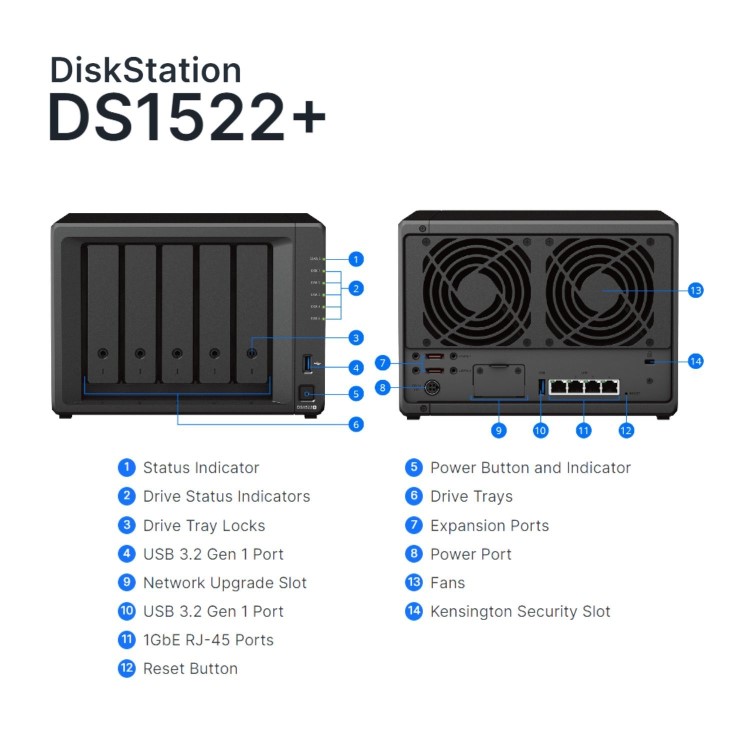

Technical Specs:
- CPU: AMD Ryzen™ R1600 dual-core (4-thread) 2.6 GHz, max. boost clock up to 3.1 GHz
- Hardware encryption engine: AES-NI
- Memory: 8 GB DDR4 ECC SODIMM (expandable up to 32 GB
- Compatible drive types: 5 x 3.5" or 2.5" SATA HDD/SSD / 2 x M.2 2280 NVMe SSD
- Hot swappable drives: Yes
- 2 x USB 3.2 Gen 1 ports
- 2 x Expansion ports (eSATA)
- Form factor: Desktop
- Size (HxWxD): 166 x 230 x 223 mm
- Weight: 2.7 kg
- LAN ports: 4 x 1GbE RJ-45
- Wake on LAN/WAN: Yes
- Network expansion: Supports E10G22-T1-Mini 10GbE RJ-45 Network Upgrade Module
- Scheduled power on/off: Yes
- System fans: 2 x (92 x 92 x 25 mm)
- AC input power voltage: 100 V to 240 V AC
- Power frequency: 50/60 Hz, single phase
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Relative humidity: 5% to 95% RH
- Storage Temperature: -20°C to 60°C (-5°F to 140°F)
- Relative humidity: 5% to 95% RH
- Maximum operating altitude: 5,000 m (16,400 ft)
- Networking protocols: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP
- File Systems Internal: Btrfs, ext4
- File Systems External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT
- Supported RAID types: Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
- Storage: Max. single volume size: 108 TB / Max. number of system snapshots: 65,536 / Max. number of internal volumes: 64
- SSD cache: Read/write cache support / M.2 NVMe and 2.5" SATA SSD support
- File sharing Maximum local user accounts: 2,048
- File sharing Maximum local groups: 256
- File sharing Maximum shared folders: 512
- File sharing Maximum concurrent SMB/NFS/AFP/FTP connections: 2,000
- Privileges: Windows® Access Control List (ACL) and application privileges
- Directory services: Connects with Windows® AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials
- Virtualization VMware vSphere®, Microsoft Hyper-V®, Citrix®, OpenStack, and Kubernetes Security Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, and HTTPS (customizable cipher suite)
- Supported browsers: Google Chrome®, Firefox®, Microsoft Edge®, Safari® 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android™ 11.0 and later) on tablets
- Interface languages: English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český
- Synchronizes files across Windows®, macOS®, Linux®, Android™, and iOS. The built-in cross-platform portal allows access to data anytime and anywhere
- Max. number of hosted files: 5,000,000
- Max. number of concurrent connections for PC clients: 350
- Provides virtual drives, remote folders, Windows® ACL editor, compression/extraction of archived files, bandwidth control for specific users/groups, creation of sharing links, and transfer logs
- Efficiently synchronizes files across sites by keeping shared data on Synology C2 Storage and streaming files to Synology NAS worldwide on request. Frequently requested files are cached at each site for low-latency access
- Supports bandwidth control for TCP connections, custom FTP passive port ranges, anonymous FTP, FTP over TLS/SSL and SFTP protocols, network booting with TFTP and PXE support, and transfer logs
- Enables high-speed data transfer over WAN between Synology NAS and desktop platforms through the exclusive SITA technology
- Offers one or two-way synchronization with public cloud storage providers including Alibaba Cloud OSS, Backblaze B2, Baidu Cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack Swift-compatible storage, Tencent COS, WebDAV servers and Yandex Disk
- Search through files, metadata, and more on your NAS. Integration with Windows Search and macOS Spotlight makes it easy to find files
- Migrates data, system setting, and applications seamlessly from one Synology NAS to another to ensure maximum service availability
- SAN Manager Max. number of iSCSI targets: 128
- SAN Manager Max. number of LUNs: 256
- SAN Manager LUN clone/snapshot support
- Virtual Machine Manager: Supports running Windows®, Linux®, and Virtual DSM-based virtual machines on Synology NAS
- Hyper Backup: Supports local backup, network backup, and data backup to other devices, Synology NAS, and public clouds including C2 Storage
- Backup tools: DSM configuration backup, macOS® Time Machine® support, Synology Drive Client desktop application / Shared folder sync supports a maximum of 32 tasks
- Snapshot Replication Maximum number of snapshots for shared folders: 1,024
- Snapshot Replication Maximum number of replications: 32
- Synology High Availability Reduces service downtime by combining two identical NAS into a high-availability cluster
- Active Backup for Business: An all-in-one backup solution designed for heterogeneous business IT environments. It enables IT admins to remotely manage and protect PCs, servers, Synology systems, and VMs from one centralized console
- Active Backup for Google: Workspace Supports backup and restoration of Google Workspace My Drive, Team Drive, Gmail, Contacts, and Calendar: Active Backup for Microsoft 365 Supports backup and restoration of Microsoft 365 OneDrive for Business, Outlook, Contacts, and Calendar
- Synology Photos: An efficient photo management solution for professional and amateur photographers. Automated tools allow users to group, filter, organize, and share content while keeping their photos safe and secure
- Surveillance Station Maximum IP cameras: 40, for a total of 1200 FPS at 720p (H.264)
- Synology Directory Server: Provides a flexible and cost-effective domain controller solution
- Central Management System: Provides a single interface to manage and monitor multiple Synology NAS
- VPN Server Maximum connections: 40
- VPN Server Supported VPN protocols: PPTP, OpenVPN™, L2DTP/IPSec
- Active Insight: Monitor health statistics, login activity, and backup statuses for your Synology servers worldwide, and receive notifications and advice from our centralized cloud-hosted management platform
- Storage Analyzer: Displays volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, large files, most recently modified files, and least recently accessed files
- Antivirus Essential: Provides full system scans, scheduled scans, white list customization, and auto-update of virus definitions
- Web Station: Enables hosting for up to 30 websites with support for PHP/MariaDB® and 3rd-party applications
- Other packages: DNS Server, RADIUS Server, and Log Center
- iOS/Android™ applications: Synology Drive, Synology MailPlus, Synology Secure SignIn, Synology Chat, Synology LiveCam, Synology Active Insight, DS cam, DS file, DS finder, and DS note
What's In the Box:
- x1 DS1522+
- x1 Quick Installation Guide
- x1 Accessory pack
- x1 AC power adapter
- x1 AC power cord
- x2 RJ-45 LAN cables
